Product Description

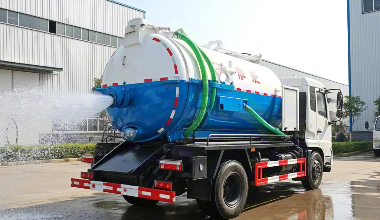

The 4/8m cleaning and sewage suction truck is a multifunctional sanitation vehicle integrating high-pressure cleaning and strong sewage suction. It is equipped with 4 cubic clear water tanks and 8 cubic sewage tanks, which can effectively deal with dredging operations in complex environments such as municipal drainage pipelines, septic tanks, culverts, etc. The vehicle is flexible in operation and stable in performance, and is particularly suitable for operations in old urban neighborhoods and narrow sections. The 4/8m cleaning and suction truck adopts advanced hydraulic system and high vacuum suction device, which significantly improves the operation efficiency and makes the maintenance more convenient. Choosing a 4/8m cleaning and suction truck is an ideal choice to improve sanitation efficiency and operation quality.

Product details and features

Function description: the 4/8m cleaning and suction truck integrates the functions of high-pressure water cleaning and suction and discharge, and can simultaneously complete many tasks such as dredging, suction and washing, saving manpower and improving efficiency. Highlights of

products: using high-power vacuum pump and imported high-pressure pump, the 4/8m cleaning and suction truck has superior performance in cleaning pressure and suction, fast operation speed and good cleaning effect.

Application Scenario: 4/8m cleaning and suction truck is suitable for urban pipeline cleaning, sewer maintenance, wastewater treatment in industrial areas and other environments, especially for old urban areas and rural sewage stations.

Design Advantages: The 4/8m cleaning and suction truck adopts a split tank structure, with front clean water and rear sewage, with reasonable layout; With lifting, rear door opening and sewage self-discharging functions, the operation is labor-saving and safe.

supports customization: the tank volume can be adjusted according to customer needs, and personalized configurations such as automatic pipe coiler can be selected. The 4/8m cleaning and suction truck can flexibly adapt to various operation requirements and meet diversified market needs.

Quality Assurance: The 4/8m cleaning and suction truck adopts well-known brand chassis and core components. The whole vehicle has undergone rigorous manufacturing and factory inspection to ensure reliable operation under high-strength working conditions.

Contact Us
We will reply within 5 minutes of working time
Quote Now
Technical parameters
Standard Optional None
Basic information
  • Vehicle modelCLW5180GQWE6
  • Chassis modelEQ1185LJ9CDE
  • Energy TypeDiesel
  • Maximum speed100
  • Engine power (KW)145
    154
    143
    162
Body
  • Overall dimension L×W×H(mm)7850×2550×3400
  • Vehicle length (mm)7850
  • Vehicle width (mm)2550
  • Vehicle height (mm)3400
  • Wheelbase (mm)4500
  • Front track (mm)1862
  • Rear track (mm)1806
  • Minimum ground clearance (mm)400
  • Curb weight (kg)9940
  • Full load mass (kg)18000
  • Rated load mass (kg)7930
  • Fuel tank volume (L)150
  • Number of doors (unit)2
  • Number of seats (pieces)2 to 3
Engine
  • Displacement (ml)4087
  • Engine boost
Motor
  • Number of drive motors (pts)None
Generator
  • Whether to configure🔧 Optional
  • Rated power (KW)2
  • Voltage/Current Display🔧 Optional
  • Type of fuelDiesel
  • Startup TypeElectric start
  • Noise level (db) ≤ 80db
  • Frequency and voltage stabilization
Gearbox
  • Number of gears (unit)8
  • Gearbox typeManual
Chassis/Steering
  • Driving mode4 x 2
  • Steering assist typeHydraulic boost
Active safety
  • ABS anti-lock🔧 Optional
Passive Safety
  • Tire pressure monitoring system🔧 Optional
  • Explosion-proof tire🔧 Optional
Auxiliary/Control Configuration
  • Driving assistance image🔧 Optional
  • Level of driving assistanceNone
  • Air suspension🔧 Optional
Comfort/anti-theft configuration
  • Central lock in the car 🔧 Optional
  • Remote Key Type 🔧 Optional
  • Built-in driving recorder 🔧 Optional
  • Satellite navigation system 🔧 Optional
  • 110V/220V/230V power socket 🔧 Optional
Seat configuration
  • Seat materialCloth seats
  • Electric seat adjustment
  • Driver's seat adjustment
  • Passenger Seat Adjustment
  • Front seat functionNone
  • Second row seat functionNone
Intelligent interconnection
  • Car Radio
  • Mobile phone interconnection mapping
  • Car networking
  • 4G/5G network
  • AV system
  • Multimedia Interface
Lighting
  • Low beam ✓ Standard
  • High beam ✓ Standard
  • Lifting lamp 🔧 Optional
  • Lifting height of lifting lamp (mm) 1200
  • Number of Lifting Lights (unit) 2
  • Total power of lifting lamp (KW) 127
  • Parking warning light ✓ Standard
  • Parking lights on both sides 🔧 Optional
  • Rear parking lamp 🔧 Optional
  • Steering assist lamp ✓ Standard
  • Front/rear fog lights ✓ Standard
Glass/Mirror
  • Power windows 🔧 Optional
  • One-button window lift 🔧 Optional
  • Exterior rearview mirror function ✓ Standard
  • Interior rearview mirror function ✓ Standard
  • Interior makeup mirror ✓ Standard
  • Interior sunshade 🔧 Optional
  • Front Windshield Defrosting ✓ Standard
Air conditioning
  • Air conditioning configuration ✓ Standard
  • Air conditioning type Air conditioning
  • Effective regulation area (㎡)≥ 24.00
  • Air conditioning core function Temperature regulation
Intelligent configuration
  • Exterior camera head 🔧 Optional
  • High-precision maps 🔧 Optional
Fire protection system
  • Dry powder fire extinguisher ✓ Standard
Tank/Container
  • Material Carbon steel
  • Water tank volume (m³) 4.00
  • Gas tank volume (m³) 8.00
Other working parameters
  • Suction speed (m³/min) 9.00
  • Flow (L/S) 10.00
  • Maximum allowable diameter of material passing through (mm) 60.00
  • Operating speed (m/min) 20000.00
