3/8.5m ³ cleaning suction truck

+86 0722-3800399

Product Description

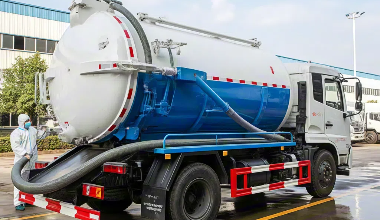

The 3/8.5m cleaning and suction truck is a multifunctional sanitation vehicle that combines high-pressure cleaning and suction functions. The model is equipped with 3 cubic meters of clear water tank and 8.5 cubic meters of sewage tank, with strong operation continuity and high efficiency. The vehicle is suitable for municipal drainage pipe network cleaning, sewer dredging, septic tank cleaning and other complex operating environments. The 3/8.5m cleaning and suction truck washes the dirt through high-pressure water flow, and then uses the strong suction system to quickly recover, significantly improving the operation efficiency and reducing the labor cost. The vehicle is designed for safety and ease of operation, making it flexible even on narrow streets or complex construction sites. Choosing a 3/8.5m cleaning suction truck is a wise choice to improve the quality and efficiency of urban sanitation work.

Product details and features

Function description: the 3/8.5m cleaning and suction truck integrates high-pressure cleaning and suction, and can simultaneously complete drainage pipe network dredging and dirt collection, effectively improving the cleaning efficiency. Highlights of

products: 3/8.5m cleaning and suction truck is equipped with high-efficiency vacuum pump and high-power high-pressure pump, which has multiple functions such as strong suction and high-pressure washing. The whole vehicle is easy to operate and has low failure rate.

Applicable Scenario: 3/8.5m cleaning and suction truck is suitable for drainage, dredging and septic tank treatment in urban blocks, industrial parks, old residential areas, villages and towns.

Design advantages: It adopts independent water sewage bin design, equipped with hydraulic cover opening and dump system, 3/8.5m ³ cleaning and suction truck has compact structure, small turning radius, and adapts to various terrains.

supports customization: users can customize pump model, water tank volume, sewage suction depth and other configurations according to operation requirements, and 3/8.5m cleaning sewage suction truck can flexibly meet various engineering requirements.

Quality Assurance: Each 3/8.5m cleaning and suction sewage truck adopts high-quality chassis and imported core components, and passes multiple tests to ensure stable performance and long service life.

We will reply within 5 minutes of working time

Technical parameters

Standard

Optional

None

Basic information

Vehicle modelCLW5140GQWZ6
Chassis modelZZ1148G17FB0
Energy TypeDiesel
Maximum speed90
Engine power (KW)118
135
140

Body

Overall dimension L×W×H(mm)7600×2350×3200
Vehicle length (mm)7600
Vehicle width (mm)2350
Vehicle height (mm)3200
Wheelbase (mm)3900
Front track (mm)1605
Rear track (mm)1595
Minimum ground clearance (mm)450
Curb weight (kg)9320
Full load mass (kg)14060
Rated load mass (kg)4545
Fuel tank volume (L)150
Number of doors (unit)2
Number of seats (pieces)2 to 3

Engine

Displacement (ml)2970
Engine boost

Motor

Number of drive motors (pts)None

Generator

Whether to configure🔧 Optional
Rated power (KW)2
Voltage/Current Display🔧 Optional
Type of fuelDiesel
Startup TypeElectric start
Noise level (db) ≤ 80db
Frequency and voltage stabilization

Gearbox

Number of gears (unit)8
Gearbox typeManual

Chassis/Steering

Driving mode4 x 2
Steering assist typeHydraulic boost

Active safety

ABS anti-lock🔧 Optional

Passive Safety

Tire pressure monitoring system🔧 Optional
Explosion-proof tire🔧 Optional

Auxiliary/Control Configuration

Driving assistance image🔧 Optional
Level of driving assistanceNone
Air suspension🔧 Optional

Comfort/anti-theft configuration

Central lock in the car 🔧 Optional
Remote Key Type 🔧 Optional
Built-in driving recorder 🔧 Optional
Satellite navigation system 🔧 Optional
110V/220V/230V power socket 🔧 Optional

Seat configuration

Seat materialCloth seats
Electric seat adjustment
Driver's seat adjustment
Passenger Seat Adjustment
Front seat functionNone
Second row seat functionNone

Intelligent interconnection

Car Radio
Mobile phone interconnection mapping
Car networking
4G/5G network
AV system
Multimedia Interface

Lighting

Low beam ✓ Standard
High beam ✓ Standard
Lifting lamp 🔧 Optional
Lifting height of lifting lamp (mm) 1200
Number of Lifting Lights (unit) 2
Total power of lifting lamp (KW) 127
Parking warning light ✓ Standard
Parking lights on both sides 🔧 Optional
Rear parking lamp 🔧 Optional
Steering assist lamp ✓ Standard
Front/rear fog lights ✓ Standard

Glass/Mirror

Power windows 🔧 Optional
One-button window lift 🔧 Optional
Exterior rearview mirror function ✓ Standard
Interior rearview mirror function ✓ Standard
Interior makeup mirror ✓ Standard
Interior sunshade 🔧 Optional
Front Windshield Defrosting ✓ Standard

Air conditioning

Air conditioning configuration ✓ Standard
Air conditioning type Air conditioning
Effective regulation area (㎡)≥ 20.00
Air conditioning core function Temperature regulation

Intelligent configuration

Exterior camera head 🔧 Optional
High-precision maps 🔧 Optional

Fire protection system

Dry powder fire extinguisher ✓ Standard

Tank/Container

Material Carbon steel
Water tank volume (m³) 3.00
Gas tank volume (m³) 8.50

Other working parameters

Suction speed (m³/min) 9.00
Flow (L/S) 10.00
Maximum allowable diameter of material passing through (mm) 60.00
Operating speed (m/min) 20000.00
