1.7/1.7m ³ cleaning suction truck
左前
正前
右前
右侧
右后
正后
左后
左侧
左前
正前
右前
右侧
右后
正后
左后
左侧
+86 0722-3800399
Product Description

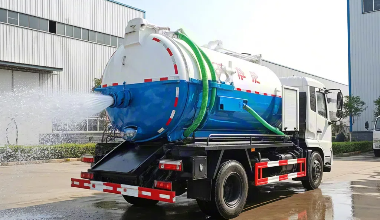

The 1.7/1.7m cleaning and suction truck is a small dual-function sanitation vehicle, with a clear water tank and a sewage tank of 1.7 cubic meters each. It is suitable for use in narrow streets, back streets and alleys in urban areas that have higher space requirements. The model integrates high-pressure cleaning and pollution absorption operations, which effectively improves work efficiency and reduces vehicle scheduling and labor costs. The 1.7/1.7m cleaning and suction truck has good mobility and multi-functional application ability, and is an ideal choice for municipal sanitation units, residential properties and township operations. The car is compact, environmentally friendly and energy-saving, easy to maintain, is a strong guarantee for efficient operations.

Product details and features

Function description: 1.7/1.7m cleaning and suction truck integrates high-pressure cleaning and vacuum suction functions, which can quickly complete various cleaning operations such as sewer pipes, sewage wells, septic tanks, etc.

Product Highlight: The 1.7/1.7m cleaning and suction truck adopts imported high-pressure pump and vacuum pump, with strong power, rapid pumping and discharging, small body but comprehensive functions.

Applicable Scenarios: Whether it is a small street in the city, a community alley, a campus or a small industrial park, the 1.7/1.7m cleaning and suction truck can shuttle flexibly and operate accurately.

Design Advantages: The 1.7/1.7m cleaning and suction truck adopts split tank design, with reasonable volume, stable center of gravity of the whole vehicle, automatic return reel and remote control function, and convenient operation.

supports customization: the water pump configuration, tank material, operating system and vehicle color of the 1.7/1.7m cleaning and suction sewage truck can be customized according to customer requirements.

Quality Assurance: Each 1.7/1.7m ³ cleaning and suction truck has undergone high-pressure testing and vacuum sealing testing before leaving the factory. The entire vehicle has passed the ISO quality system certification to ensure safety and reliability.

Contact Us
We will reply within 5 minutes of working time
Quote Now
Technical parameters
Standard Optional None
Basic information
  • Vehicle modelCLW5041GQWE6
  • Chassis modelEQ1045SJ16DC
  • Energy TypeDiesel
  • Maximum speed110
  • Engine power (KW)70
    80
Body
  • Overall dimension L×W×H(mm)5700×1900×2050
  • Vehicle length (mm)5700
  • Vehicle width (mm)1900
  • Vehicle height (mm)2050
  • Wheelbase (mm)2800
  • Front track (mm)1369
  • Rear track (mm)1242
  • Minimum ground clearance (mm)370
  • Curb weight (kg)3335
  • Full load mass (kg)4495
  • Rated load mass (kg)1030
  • Fuel tank volume (L)70
  • Number of doors (unit)2
  • Number of seats (pieces)2 to 3
Engine
  • Displacement (ml)2300
  • Engine boost
Motor
  • Number of drive motors (pts)None
Generator
  • Whether to configure🔧 Optional
  • Rated power (KW)2
  • Voltage/Current Display🔧 Optional
  • Type of fuelDiesel
  • Startup TypeElectric start
  • Noise level (db) ≤ 80db
  • Frequency and voltage stabilization
Gearbox
  • Number of gears (unit)5
  • Gearbox typeManual
Chassis/Steering
  • Driving mode4 x 2
  • Steering assist typeHydraulic boost
Active safety
  • ABS anti-lock🔧 Optional
Passive Safety
  • Tire pressure monitoring system🔧 Optional
  • Explosion-proof tire🔧 Optional
Auxiliary/Control Configuration
  • Driving assistance image🔧 Optional
  • Level of driving assistanceNone
  • Air suspension🔧 Optional
Comfort/anti-theft configuration
  • Central lock in the car 🔧 Optional
  • Remote Key Type 🔧 Optional
  • Built-in driving recorder 🔧 Optional
  • Satellite navigation system 🔧 Optional
  • 110V/220V/230V power socket 🔧 Optional
Seat configuration
  • Seat materialCloth seats
  • Electric seat adjustment
  • Driver's seat adjustment
  • Passenger Seat Adjustment
  • Front seat functionNone
  • Second row seat functionNone
Intelligent interconnection
  • Car Radio
  • Mobile phone interconnection mapping
  • Car networking
  • 4G/5G network
  • AV system
  • Multimedia Interface
Lighting
  • Low beam ✓ Standard
  • High beam ✓ Standard
  • Lifting lamp 🔧 Optional
  • Lifting height of lifting lamp (mm) 1200
  • Number of Lifting Lights (unit) 2
  • Total power of lifting lamp (KW) 127
  • Parking warning light ✓ Standard
  • Parking lights on both sides 🔧 Optional
  • Rear parking lamp 🔧 Optional
  • Steering assist lamp ✓ Standard
  • Front/rear fog lights ✓ Standard
Glass/Mirror
  • Power windows 🔧 Optional
  • One-button window lift 🔧 Optional
  • Exterior rearview mirror function ✓ Standard
  • Interior rearview mirror function ✓ Standard
  • Interior makeup mirror ✓ Standard
  • Interior sunshade 🔧 Optional
  • Front Windshield Defrosting ✓ Standard
Air conditioning
  • Air conditioning configuration ✓ Standard
  • Air conditioning type Air conditioning
  • Effective regulation area (㎡)≥ 16.00
  • Air conditioning core function Temperature regulation
Intelligent configuration
  • Exterior camera head 🔧 Optional
  • High-precision maps 🔧 Optional
Fire protection system
  • Dry powder fire extinguisher ✓ Standard
Tank/Container
  • Material Carbon steel
  • Water tank volume (m³) 1.70
  • Gas tank volume (m³) 1.70
Other working parameters
  • Suction speed (m³/min) 9.00
  • Flow (L/S) 10.00
  • Maximum allowable diameter of material passing through (mm) 24.00
  • Operating speed (m/min) 20000.00
