9.6m ³ fecal suction truck
左前
左后
左前
左后
+86 0722-3800399
Product Description

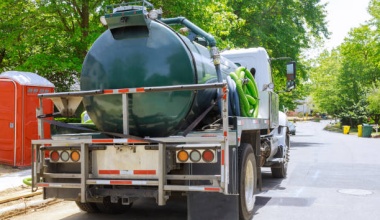

The 9.6m ³ dung suction vehicle is an efficient special vehicle suitable for urban and rural sanitation, septic tank cleaning and farm dung pumping operations. The tank volume of this model is 9.6 cubic meters, which not only ensures a large pollution storage capacity, but also has good maneuverability, suitable for operation under narrow or complex road conditions. The 9.6m ³ fecal suction truck is equipped with a high-power vacuum pump, which has fast suction speed, high operation efficiency and simple and convenient operation. The tank body is made of corrosion-resistant and thickened carbon steel, and the inner wall is treated with anti-corrosion to effectively extend the service life of the vehicle. The vehicle power system is stable and reliable, with good off-road and load performance. The 9.6m ³ fecal suction truck is an ideal sanitation equipment with medium capacity and high efficiency, which is favored by the market.

Product details and features

Functional orientation: 9.6m ³ dung suction truck is specially designed for urban and rural dung removal and transportation, with good collection, storage and discharge functions.

Product Highlights: The 9.6m ³ fecal suction truck adopts a high-power vacuum pump system with strong suction and shortened working time.

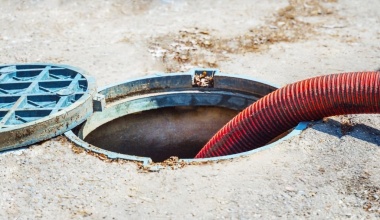

Application Scenario: The 9.6m ³ dung suction truck is suitable for various applications such as toilet improvement in rural areas, maintenance of municipal pipe networks, and dung removal in farms.

design advantages: 9.6m ³ fecal suction truck tank structure is scientific and reasonable, using thick steel plate welding and anti-corrosion treatment, safe and durable.

supports customization: 9.6m ³ fecal suction truck can customize parameter configuration such as pipe diameter, pump model, body spraying, etc. according to user requirements.

Quality Assurance: The 9.6m ³ fecal suction truck has passed a number of rigorous factory tests to ensure reliable performance and meet all-weather operation requirements.

Contact Us
We will reply within 5 minutes of working time
Quote Now
Technical parameters
Standard Optional None
Basic information
  • Vehicle modelCLW5121GXEE6
  • Chassis modelEQ1120GL6DJ
  • Energy TypeDiesel
  • Maximum speed90
  • Engine power (KW)110
    116
    121
    145
Body
  • Overall dimension L×W×H(mm)6620×2400×2720
  • Vehicle length (mm)6620
  • Vehicle width (mm)2400
  • Vehicle height (mm)2720
  • Wheelbase (mm)3800
  • Front track (mm)1750
  • Rear track (mm)1660
  • Minimum ground clearance (mm)450
  • Curb weight (kg)5540
  • Full load mass (kg)11990
  • Rated load mass (kg)6320
  • Fuel tank volume (L)70
  • Number of doors (unit)2
  • Number of seats (pieces)2 to 3
Engine
  • Displacement (ml)2499
  • Engine boost
Motor
  • Number of drive motors (pts)None
Generator
  • Whether to configure🔧 Optional
  • Rated power (KW)2
  • Voltage/Current Display🔧 Optional
  • Type of fuelDiesel
  • Startup TypeElectric start
  • Noise level (db) ≤ 80db
  • Frequency and voltage stabilization
Gearbox
  • Number of gears (unit)6
  • Gearbox typeManual
Chassis/Steering
  • Driving mode4 x 2
  • Steering assist typeHydraulic boost
Active safety
  • ABS anti-lock🔧 Optional
Passive Safety
  • Tire pressure monitoring system🔧 Optional
  • Explosion-proof tire🔧 Optional
Auxiliary/Control Configuration
  • Driving assistance image🔧 Optional
  • Level of driving assistanceNone
  • Air suspension🔧 Optional
Comfort/anti-theft configuration
  • Central lock in the car 🔧 Optional
  • Remote Key Type 🔧 Optional
  • Built-in driving recorder 🔧 Optional
  • Satellite navigation system 🔧 Optional
  • 110V/220V/230V power socket 🔧 Optional
Seat configuration
  • Seat materialCloth seats
  • Electric seat adjustment
  • Driver's seat adjustment
  • Passenger Seat Adjustment
  • Front seat functionNone
  • Second row seat functionNone
Intelligent interconnection
  • Car Radio
  • Mobile phone interconnection mapping
  • Car networking
  • 4G/5G network
  • AV system
  • Multimedia Interface
Lighting
  • Low beam ✓ Standard
  • High beam ✓ Standard
  • Lifting lamp 🔧 Optional
  • Lifting height of lifting lamp (mm) 1200
  • Number of Lifting Lights (unit) 2
  • Total power of lifting lamp (KW) 127
  • Parking warning light ✓ Standard
  • Parking lights on both sides 🔧 Optional
  • Rear parking lamp 🔧 Optional
  • Steering assist lamp ✓ Standard
  • Front/rear fog lights ✓ Standard
Glass/Mirror
  • Power windows 🔧 Optional
  • One-button window lift 🔧 Optional
  • Exterior rearview mirror function ✓ Standard
  • Interior rearview mirror function ✓ Standard
  • Interior makeup mirror ✓ Standard
  • Interior sunshade 🔧 Optional
  • Front Windshield Defrosting ✓ Standard
Air conditioning
  • Air conditioning configuration ✓ Standard
  • Air conditioning type Air conditioning
  • Effective regulation area (㎡)≥ 16.00
  • Air conditioning core function Temperature regulation
Intelligent configuration
  • Exterior camera head 🔧 Optional
  • High-precision maps 🔧 Optional
Fire protection system
  • Dry powder fire extinguisher ✓ Standard
Tank/Container
  • Material Carbon steel
  • Gas tank volume (m³) 9.60
Other working parameters
  • Suction speed (m³/min) 10.00
  • Maximum allowable diameter of material passing through (mm) 54.00
Expand
